DRILLING BUCKETS — TYPE 02
Soil Drilling Bucket
Flat hardened teeth mounted on a Q355/NM400 single-bottom body. Designed for fast, clean excavation in clay, silt, sandy soil, and loam with efficient spoil discharge via a single hinged bottom door.
DIAMETER RANGE
600 – 3000 mm
MAX GROUND STRENGTH
≤ 5 MPa
BOTTOM DOOR
Single-bottom
TEETH TYPE
Flat teeth
BODY MATERIAL
Q355 / NM400
KELLY BOX
Universal interchangeable
Product Overview

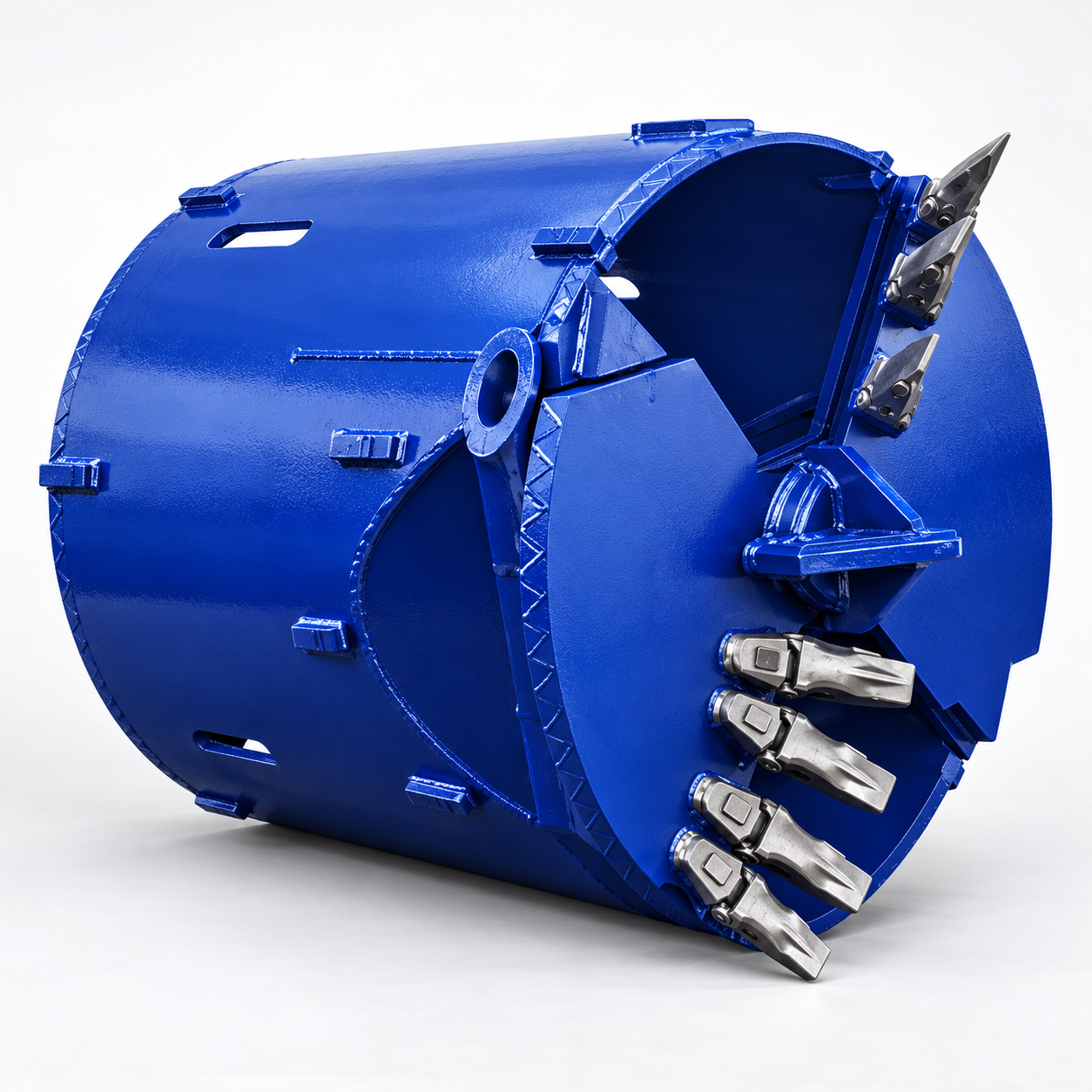

The ALVRIQ Soil Drilling Bucket is engineered for efficient excavation in soft to medium ground conditions including clay, silt, sandy soil, and loam. It features flat hardened teeth arranged in a straight cutting pattern that shears soil cleanly across the bucket face, giving fast penetration with low tooth wear in soft formations.
The bucket body is fabricated from Q355 structural steel with NM400 wear strips on the cutting edge, bottom door, and side wear zones. The single-bottom door system enables rapid discharge of excavated spoil — opening inward during drilling to retain cuttings, then swinging outward for dumping. A simplified mechanism means fewer moving parts and lower maintenance cost.
A universal kelly box connection (interchangeable with SANY, Zoomlion, XCMG, and BAUER rotary drilling rigs) makes this bucket compatible with virtually all major drill rig brands without modification.
At a Glance
Key Features

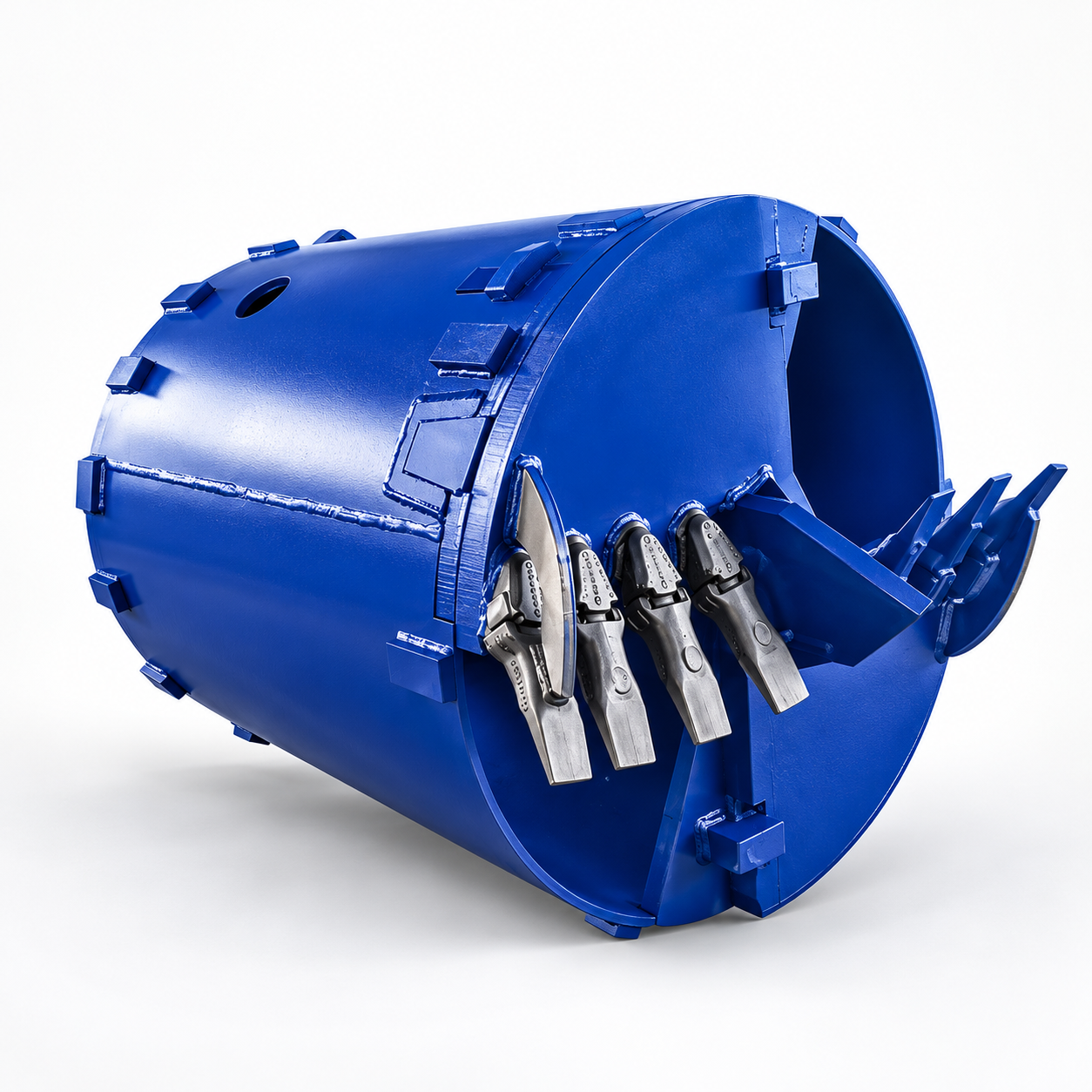

Flat Cutting Teeth
Flat teeth with hardened cutting edges for smooth penetration in soft formations. The simple, robust profile minimizes wear evenly across the cutting face and resists clogging in sticky soils.

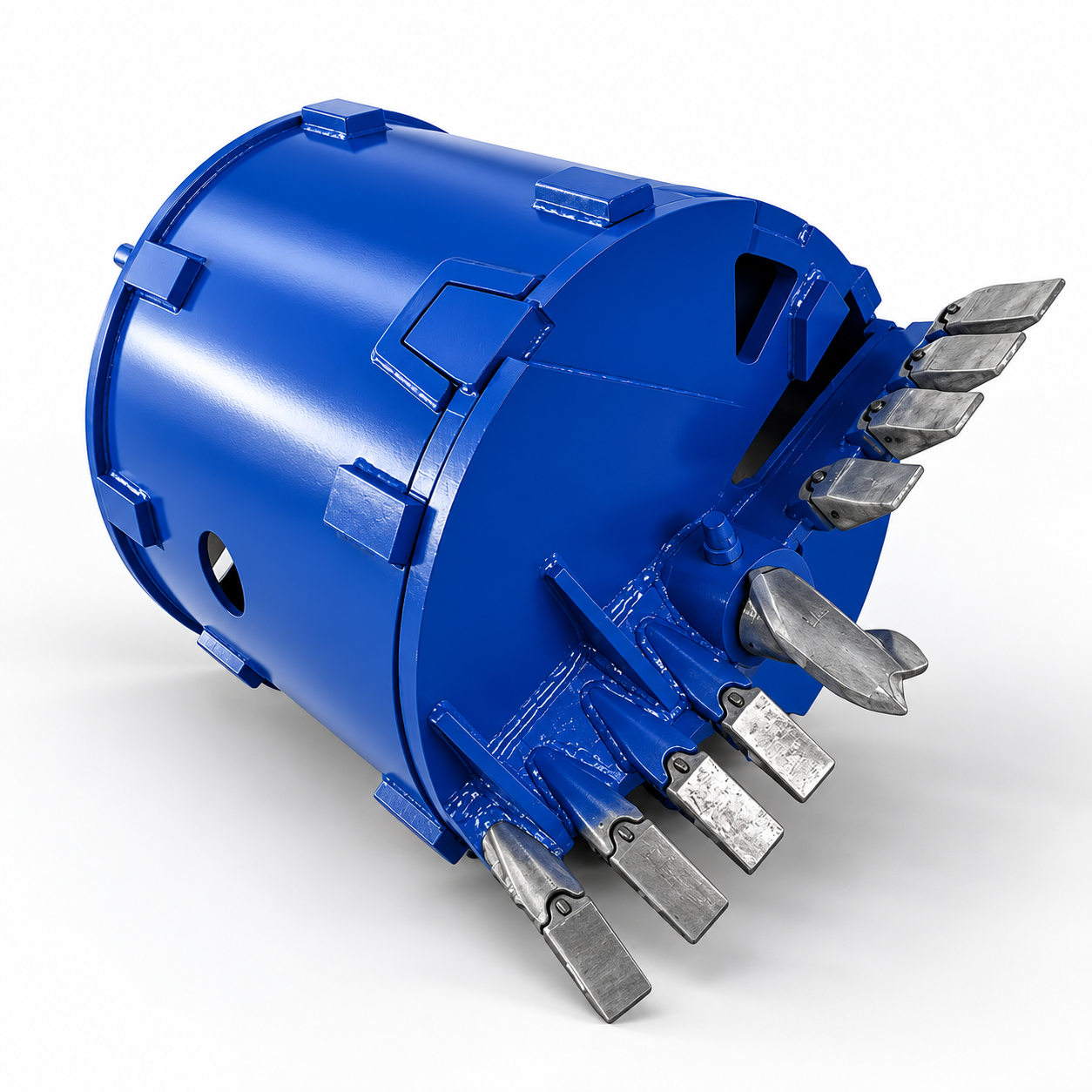

Single-Bottom Door
Single hinged bottom door opens vertically for fast soil discharge. The simplified mechanism reduces maintenance points and overall running cost for soft-ground work.
NM400 Wear Strips
NM400 (400 HBW) wear-resistant steel strips on cutting edges and bottom door. Provides extended service life in abrasive sandy and silty soils where plain steel would wear rapidly.

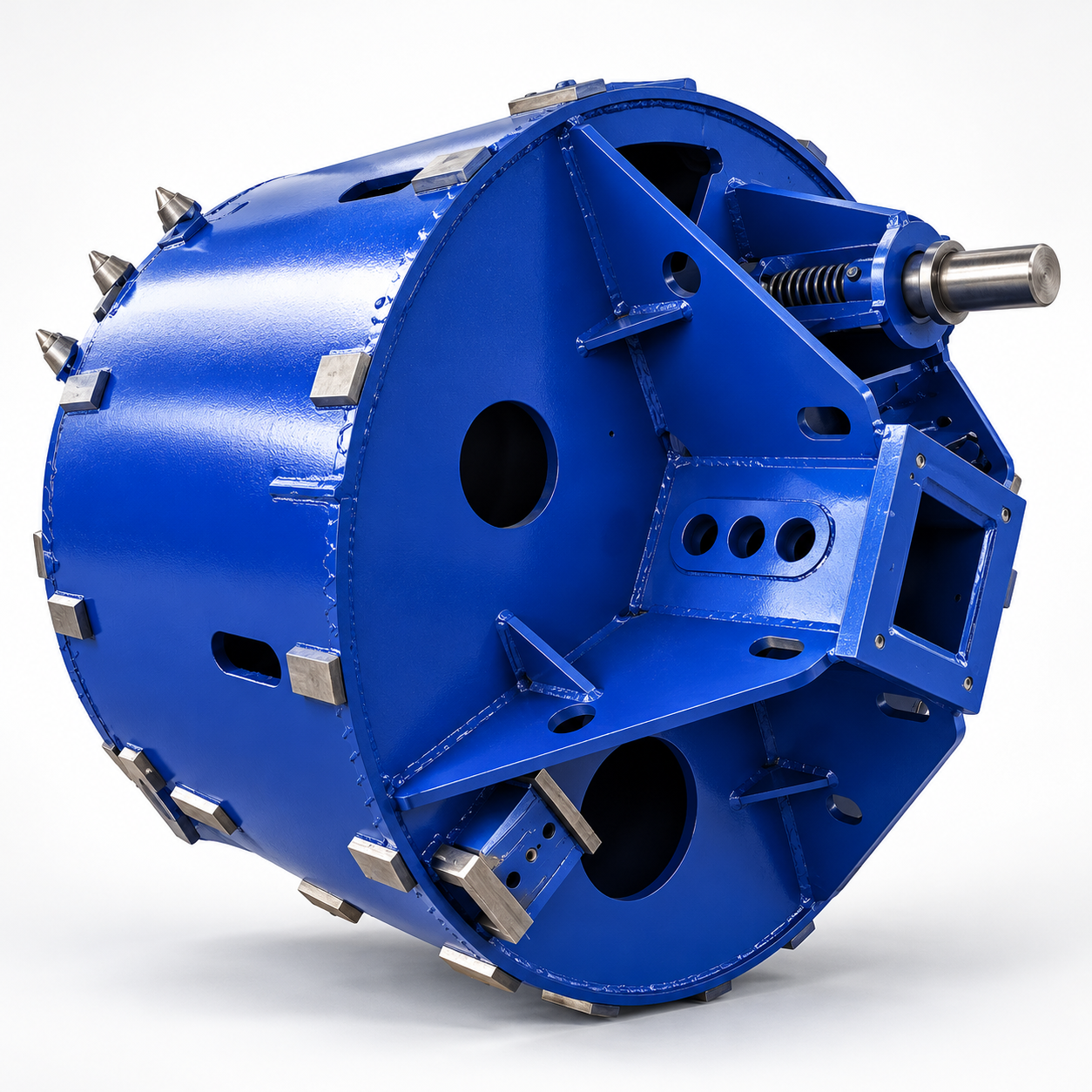

Universal Kelly Box
Interchangeable kelly box fits SANY, Zoomlion, XCMG, and BAUER rotary drilling rigs. No adapter needed — simply bolt on and start drilling.
Suitable Ground Conditions
Recommended For
Not Recommended For
Specifications
| Diameter (mm) | Capacity (m³) | Teeth Count | Tooth Type | Bottom Door | Weight (kg) |
|---|---|---|---|---|---|
| 600 | 0.17 | 12 | Flat teeth | Single | ~180 |
| 800 | 0.30 | 14 | Flat teeth | Single | ~280 |
| 1000 | 0.47 | 16 | Flat teeth | Single | ~420 |
| 1200 | 0.68 | 18 | Flat teeth | Single | ~580 |
| 1500 | 1.06 | 22 | Flat teeth | Single | ~850 |
| 2000 | 1.88 | 26 | Flat teeth | Single | ~1,400 |
* Specifications are indicative and may vary by configuration. Custom diameters up to 3000 mm available on request.

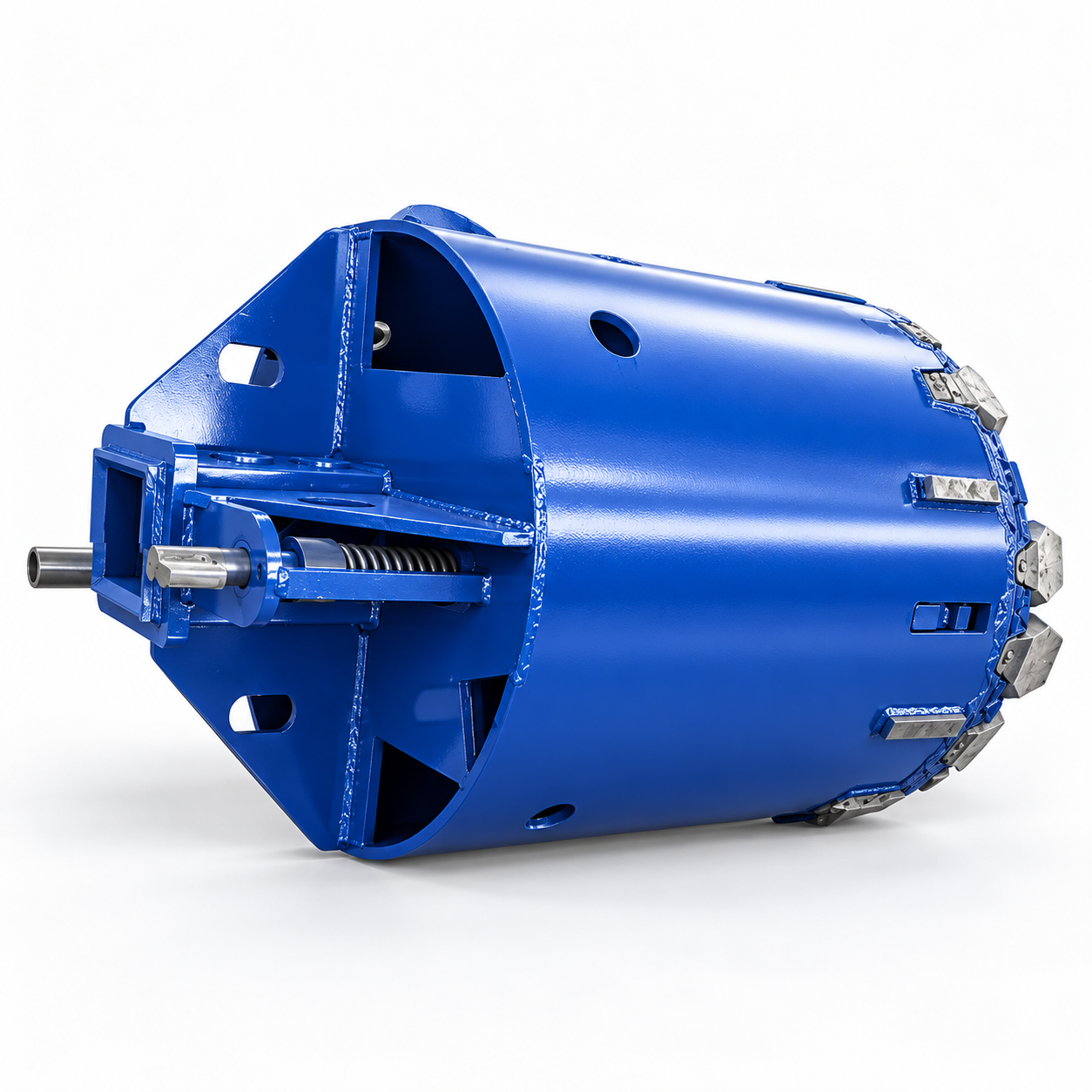

Product Gallery
How to Order
Specify Requirements
Tell us your drilling rig model, required bucket diameter, and ground conditions. We’ll recommend the optimal tooth configuration and wear package.
Confirm Quote
Receive a detailed quotation within 24 hours including specifications, lead time, and shipping terms. Confirm and proceed to production.
Production & Delivery
Manufacturing takes 15–25 days depending on specifications. Quality-tested and shipped to your project site worldwide.
