DRILLING BUCKETS — TYPE 06
Bucket with Auger
Integrated auger flight on a Q355/NM400 bucket body with carbide cutting teeth. Designed for stiff clay, compacted soil, and dense sediment where standard buckets clog — the auger blade lifts and breaks material while the bucket collects spoil simultaneously.
DIAMETER RANGE
600 – 3000 mm
MAX GROUND STRENGTH
≤ 10 MPa
BOTTOM DOOR
Single-bottom
TEETH TYPE
Carbide flat
BODY MATERIAL
Q355 / NM400
KELLY BOX
Universal interchangeable
Product Overview

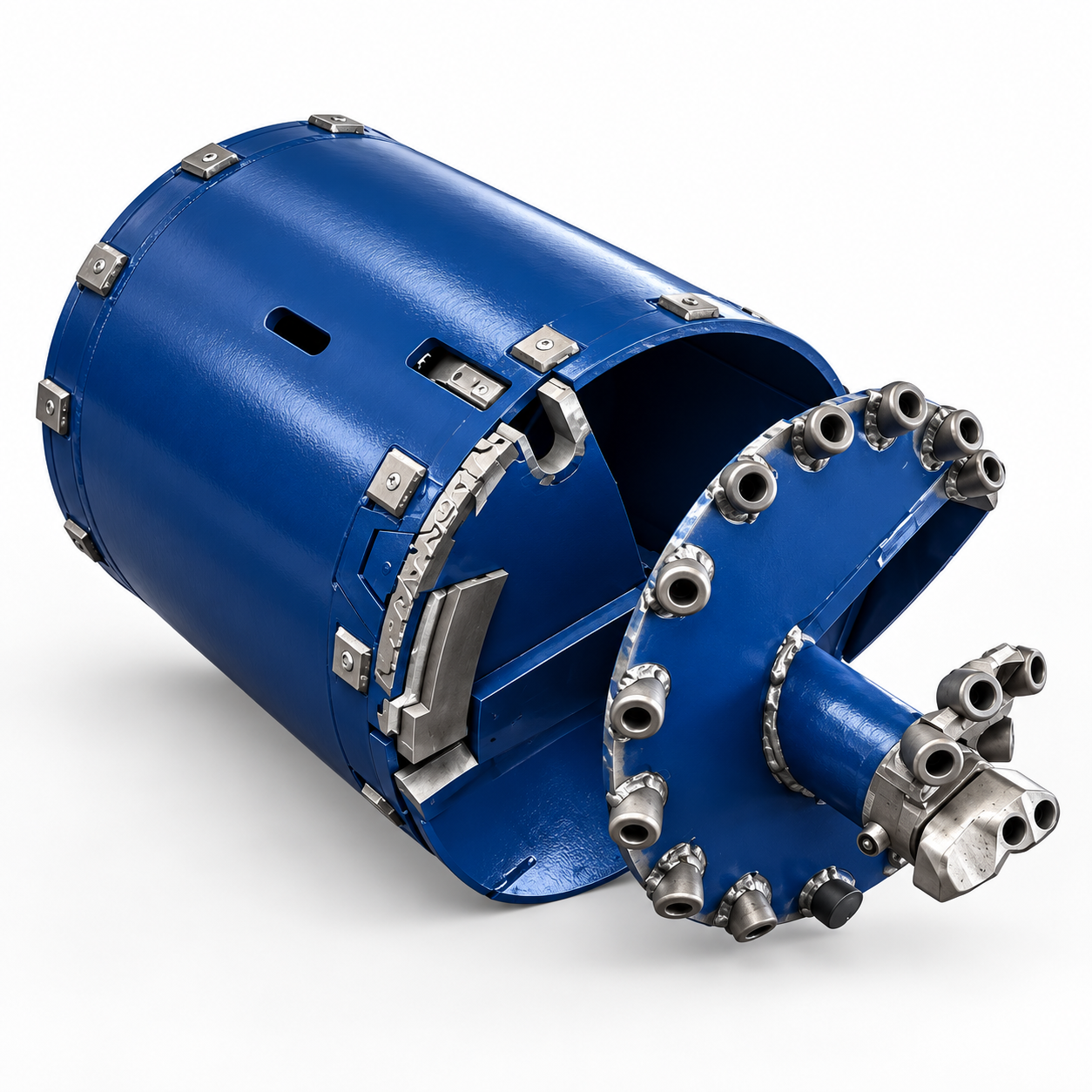

The ALVRIQ Bucket with Auger combines a standard drilling bucket body with an integrated auger flight mounted inside the cylindrical shell. As the bucket rotates, the auger blade spirals material upward, breaking stiff clay and compacted soil that would otherwise clog a plain bucket, while carbide cutting teeth on the bottom ring slice through the formation simultaneously.
The bucket body is fabricated from Q355 structural steel with NM400 wear strips on the auger flight edge, cutting ring, and bottom door. The single-bottom door system enables rapid discharge of excavated spoil — opening inward during drilling to retain cuttings, then swinging outward for dumping.
A universal kelly box connection (interchangeable with SANY, Zoomlion, XCMG, and BAUER rotary drilling rigs) makes this bucket compatible with virtually all major drill rig brands without modification.
At a Glance
Key Features
Integrated Auger Flight
Helical auger blade welded inside the bucket shell spirals material upward during rotation, breaking and lifting stiff clay that would clog a standard bucket. The dual-action design drills and loosens simultaneously for faster penetration.
Carbide Cutting Teeth
Flat carbide-tipped teeth on the bottom cutting ring slice through compacted soil and dense sediment. Combined with the auger action, this prevents clay from packing solid inside the bucket.
NM400 Wear Strips
NM400 (400 HBW) wear-resistant steel strips on auger flight edge, cutting ring, and bottom door. Provides extended service life in abrasive, sticky clay formations.
Universal Kelly Box
Interchangeable kelly box fits SANY, Zoomlion, XCMG, and BAUER rotary drilling rigs. No adapter needed — simply bolt on and start drilling.
Suitable Ground Conditions
Recommended For
Not Recommended For
Specifications
| Diameter (mm) | Capacity (m³) | Teeth Count | Tooth Type | Auger Flight | Weight (kg) |
|---|---|---|---|---|---|
| 600 | 0.17 | 10 | Carbide flat | Integrated | ~170 |
| 800 | 0.30 | 12 | Carbide flat | Integrated | ~270 |
| 1000 | 0.47 | 16 | Carbide flat | Integrated | ~410 |
| 1200 | 0.68 | 18 | Carbide flat | Integrated | ~570 |
| 1500 | 1.06 | 22 | Carbide flat | Integrated | ~840 |
| 2000 | 1.88 | 26 | Carbide flat | Integrated | ~1,380 |
* Specifications are indicative and may vary by configuration. Custom diameters up to 3000 mm available on request.
Product Gallery
How to Order
Specify Requirements
Tell us your drilling rig model, required bucket diameter, and ground conditions. We’ll recommend the optimal auger flight pitch and tooth configuration.
Confirm Quote
Receive a detailed quotation within 24 hours including specifications, lead time, and shipping terms. Confirm and proceed to production.
Production & Delivery
Manufacturing takes 15–25 days depending on specifications. Quality-tested and shipped to your project site worldwide.
